In the world of CNC machining, the Modulus project stands out as a game-changer, offering a unique and innovative solution to a common problem. This article will delve into the intricacies of Modulus, exploring its features, design philosophy, and the impact it could have on the industry.
The CNC Conundrum
Many small-scale CNC shops face a significant challenge when it comes to machine control and operation. The traditional setup often involves a dedicated PC or a laptop precariously placed near the machine, exposing it to the harsh shop floor environment. This leads to issues like workspace contamination and information asymmetry, where operators lack real-time data and control.
Modulus: A Revolutionary Approach

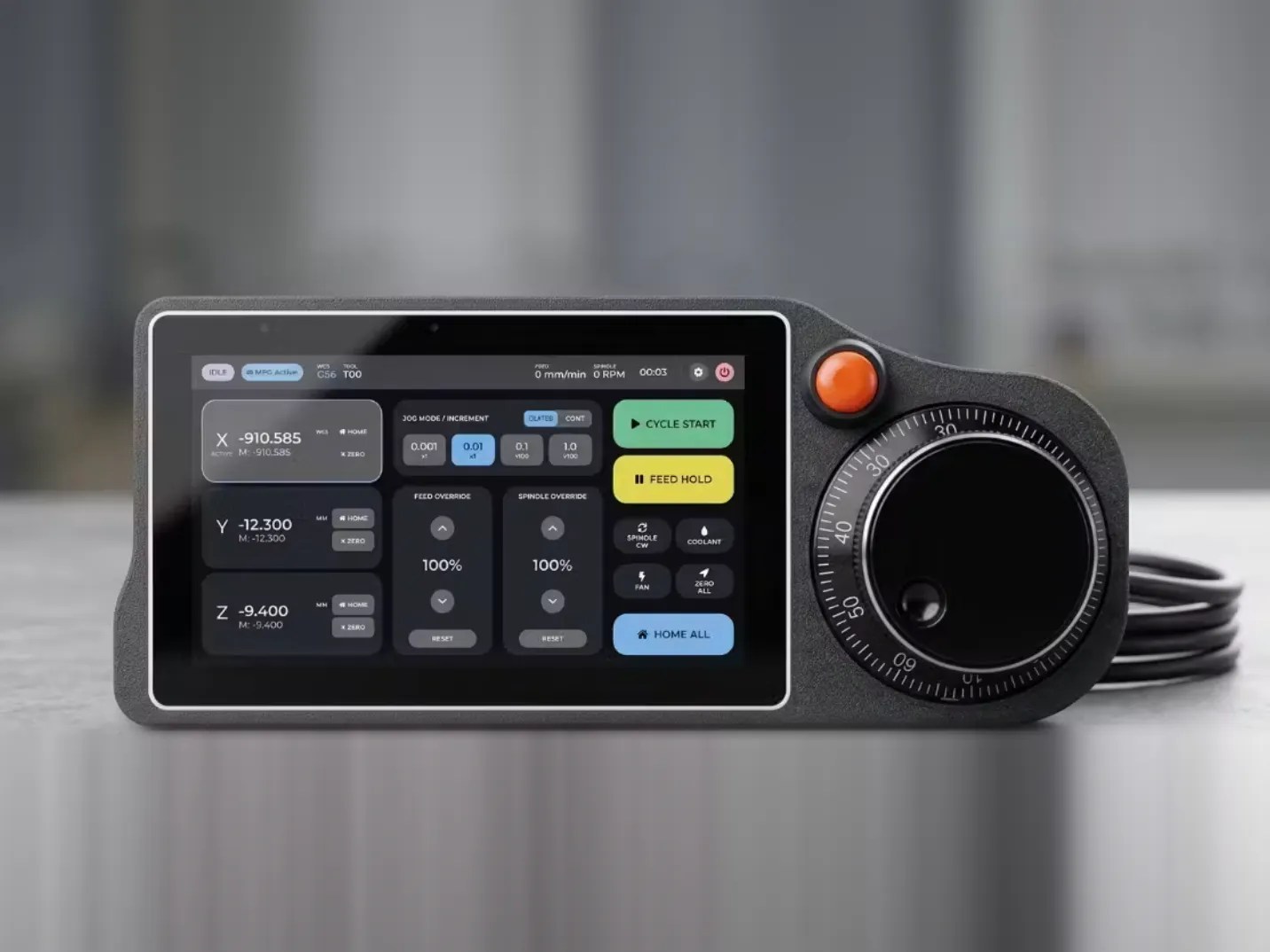

Modulus aims to revolutionize this scenario by transforming the M5Stack Tab5 into a robust, real-time control console. It's not just a pendant; it's a comprehensive solution to the challenges faced by CNC operators.
The Hardware Mastery
What makes Modulus truly impressive is its hardware-level optimization. By utilizing the dual-core architecture of the Tab5, Modulus ensures that UI rendering and machine safety are never compromised. The ESP32-P4 handles the UI, while the ESP32-C6 dedicates itself to wireless communication, ensuring low-latency and reliable transport.
Anti-Lag Design
One of the standout features is the anti-lag design. With Core 1 running a heap-free loop, the handwheel's responsiveness is unparalleled. This ensures that operators have precise control, eliminating the lag issues often associated with wireless pendants.
Zigbee Shop IoT
Modulus goes beyond machine control by incorporating Zigbee shop IoT. This allows for the automation of various shop accessories, enhancing safety and efficiency. The ability to control vacuums, blast gates, and lighting with Zigbee devices is a game-changer for shop floor management.
Safety First
Safety is a paramount concern in CNC machining, and Modulus addresses this with a dual E-Stop system. While the pendant E-Stop provides convenience, the primary, hard-wired E-Stop ensures absolute machine cutoff, always within the operator's reach.
Open Source, Open Future
Modulus is an open-source project, licensed under MIT. This openness allows for collaboration and customization, ensuring that the project can evolve and adapt to the needs of different CNC setups. The ability to rebuild from source empowers makers to take control of their machine's control surface.
Conclusion
Modulus represents a significant leap forward in CNC control and operation. With its innovative hardware design, anti-lag technology, and open-source philosophy, it offers a fresh and reliable solution to the challenges faced by small-scale CNC shops. As the project continues to develop, it has the potential to become the industry standard, revolutionizing the way CNC machines are controlled and operated.
